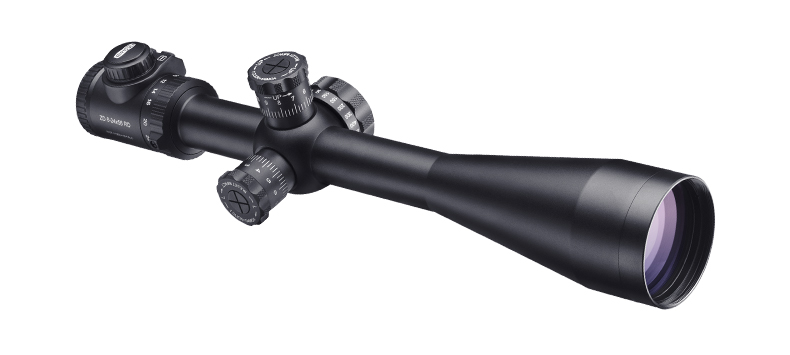

Meopta ZD 6-24x56 RD

Long-range scope designed for rifles.

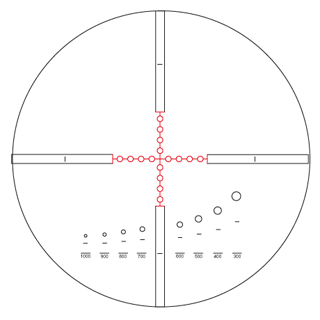

The ZD 6-24x56 RD is a precision long range riflescope developed for sniper rifles in order to achieve deadly-accurate shot placement at extreme distances. The new Mil Dot 2 illuminated reticle with integrated range-finding markers is calibrated for accurate target estimation in standard calibers 7.62x51 NATO, .308, .338 WM and 12.7 mm. Third turret parallax adjustment ranges from 25 m to infinity, guaranteeing precision aiming at any desired range.
Advanced illumination system situated on the ocular offers pushbutton control of the illumination with 256 settings for bright and adverse lighting conditions.




Features
RD Illuminated Reticle System - RD equipped riflescopes feature a highly defined illuminated red dot reticle. A third turret controller allows the user to choose between a minimum of seven reticle intensity settings for extremely low-light to bright daylight conditions. Intermediate off positions between each setting allows the user to find their preferred illumination setting quickly.
MeoBright 5501 - A proprietary ion-assisted multi-coating lens applied to all air-to-glass optical surfaces. Developed by Meopta, MeoBright 5501 ion- assisted multi-coatings eliminate glare and reflections and delivers an industry leading 99.8% light transmission per lens surface.
MeoShield - MeoShield ion-assisted coating protects external lens surfaces and delivers enhanced resistance to scratching or abrasion in extreme conditions. MeoShield meets military specifications for durability and surface hardness.
MeoTrak II Elevation and Windage Control - MeoTrak II posi-click finger adjustable windage and elevation turrets deliver precise,? MOA (0.7cm / 100m) click adjustment with superior repeatability, unparalleled tracking capability and ultimate accuracy. Positive tactile and audible clicks ensure accurate zeroing and adjustability in the field.
MeoQuick - MeoQuick fast-focus eyepiece rapidly brings your target into sharp focus and provides extra diopter travel to accommodate a wider range of visual acuity variations.
Lens Components - Individual lens components are meticulously ground and polished in-house and precisely matched for superior performance.
Etched Glass Reticle - Precision etched glass reticle delivers exceptional target definition for all shooting applications.
Erector System - Developed to provide maximum holding force to withstand heavy caliber recoil.
30mm Main Tube Construction - One piece, aircraft grade aluminum 30mm main tube is? ELOX? hard anodized for an incredibly durable, scratch resistant, non-reflective matte black finish.
Waterproof - All riflescopes are 100% guaranteed waterproof, submersible and are fully protected against humidity, rain and snow.
Fog-proof - All riflescopes are purged and sealed with inert Nitrogen gas to provide 100% guaranteed fog-proof performance.
Shockproof - All riflescopes are 100% guaranteed shockproof to withstand impacts and heavy caliber recoil.
10 Years Transferable Warranty - All tactical riflescopes carry Meopta's 10 Years Transferable Warranty (after registration).


Magnification 6-24x
Front lens diameter 56mm
30mm pipe
Optical field (m / 100m) 1.60-6.10m
Distance from the eye 80mm
Maximum shooting angle (D) -3 +3
Minimum setting (cm / 100m) 0.7
Vertical and horizontal deviation (MOA) 83
Weight 850g
Length 386mm
